AUTO Change Shelf Deck Panel Roll Forming Machine

Profile

AUTO Change Size Width 250-500mm

Material

Material Thickness: 0.8-1.4mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength :G340-550Mpa

Work Follow

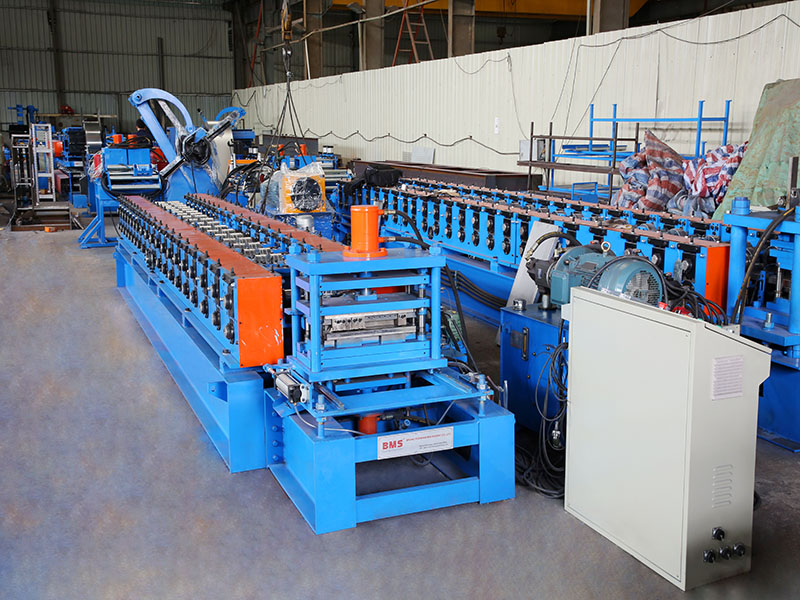

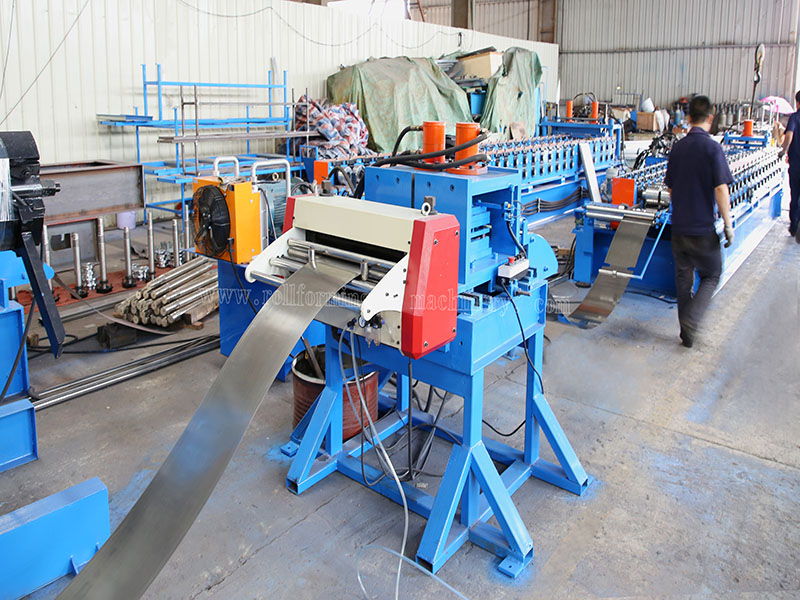

Decoiler→Servo Feeding & Punching Device→Feeding Guide Device→Roll Forming System→Hydraulic Post Bending & Cutting Device→Exit Rack

Machine Components

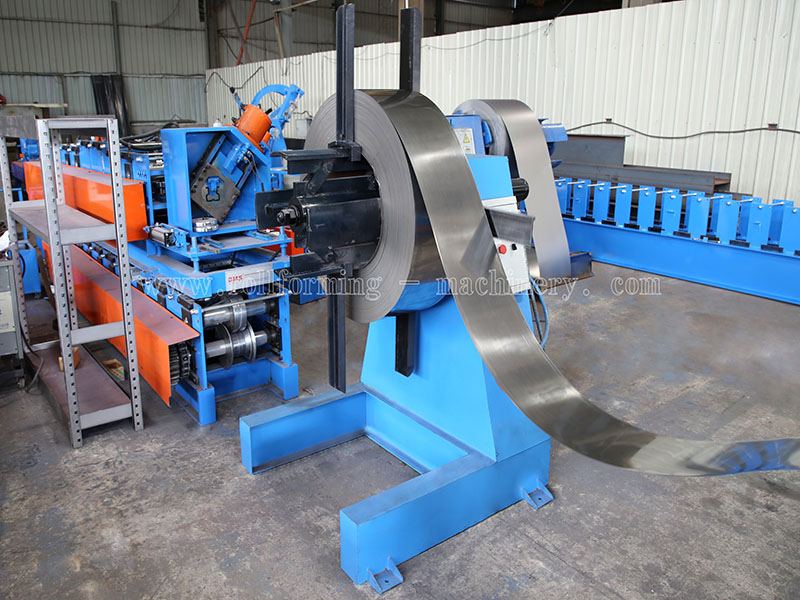

1) 5 T Hydraulic Decoiler

Hydraulic control steel coil inner bore shrinkage and stop
Max. feeding width:600mm
Coil ID Range:508±30mm,Outside Diameter:1600mm
Max capacity:5 ton,Oil pump motor:2.2KW

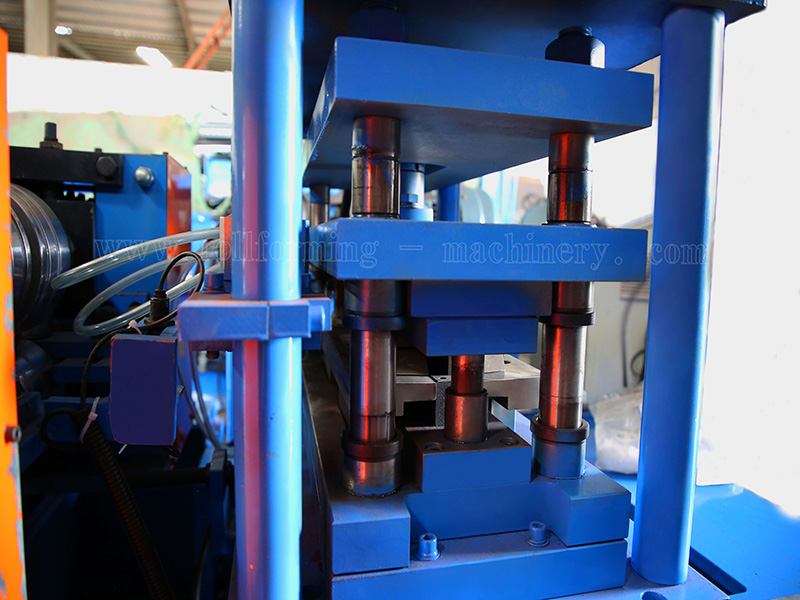

2) Servo Feeding & Punching Device

3) Feed Guide Device

The guiding position can be adjusted for suitable material feeding

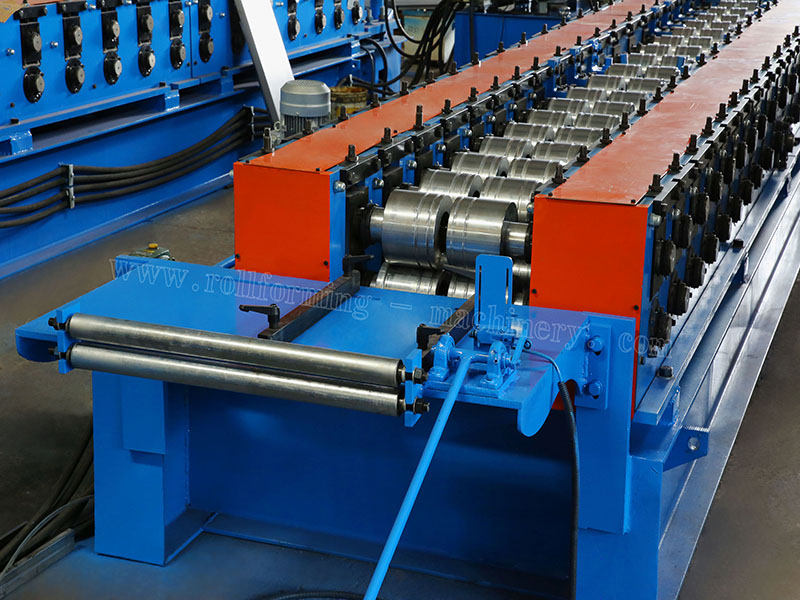

4) Main Machine

Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm

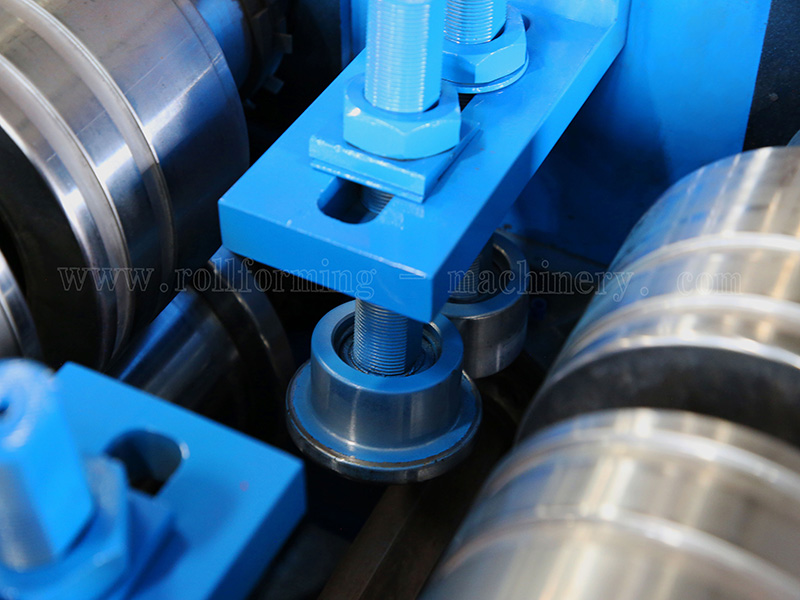

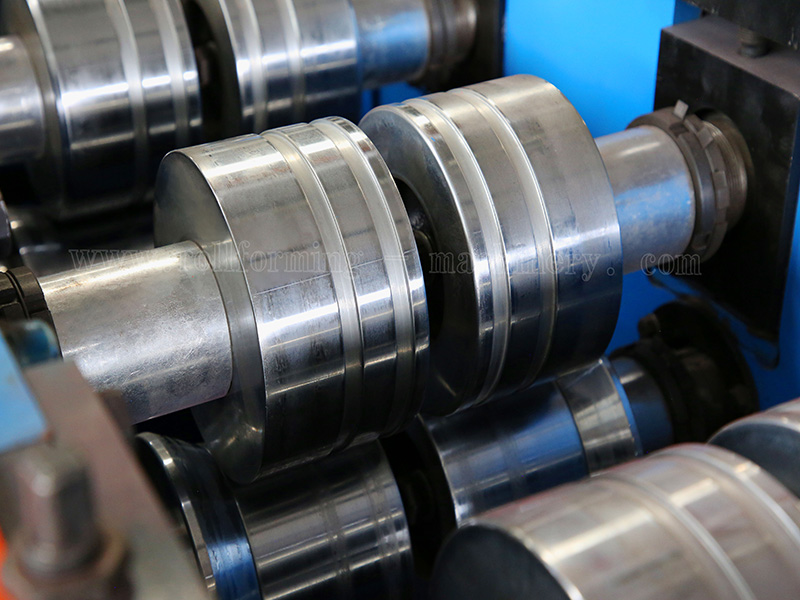

Rollers manufactured from GCr15 Steel,CNC lathes,Heat Treatment
Shafts Diameter=ф80mm,precision machined

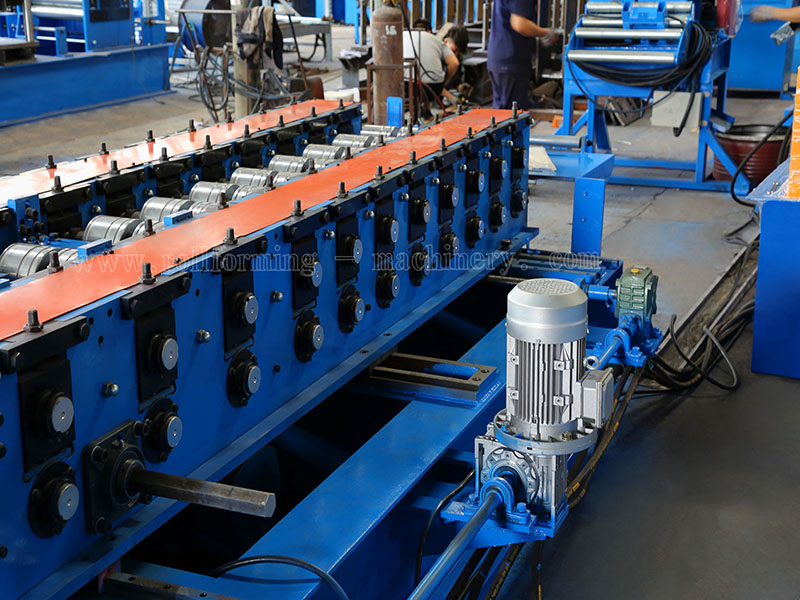

Gear/Sprocket driving,about 24-step to form
Main Motor(Polaroid brand)=15KW,Frequency speed control
Real forming speed 15-18m/min(Not include cutting time)

Use electric motor to auto change size

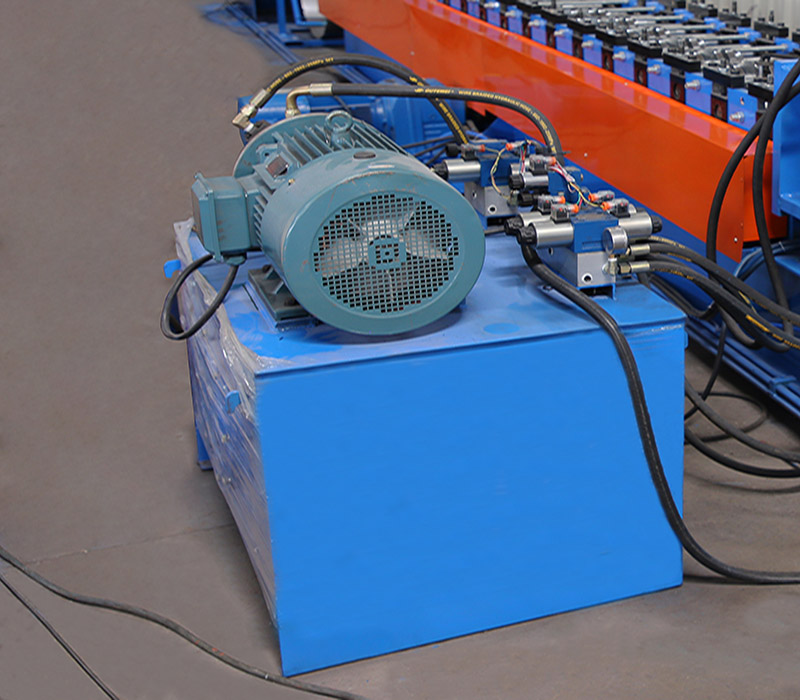

5) Post Hydraulic Bending & Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 5.5KW
Cutting & Bending tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station

6) PLC Control System

7)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

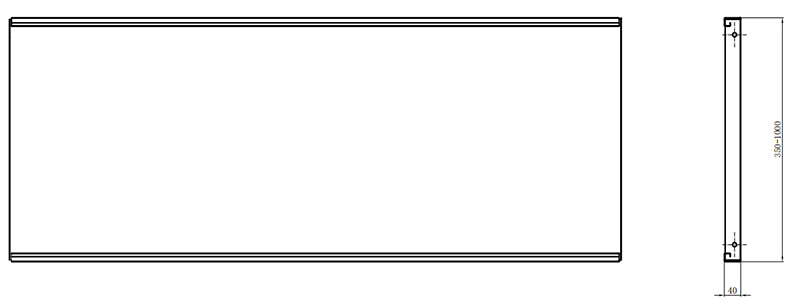

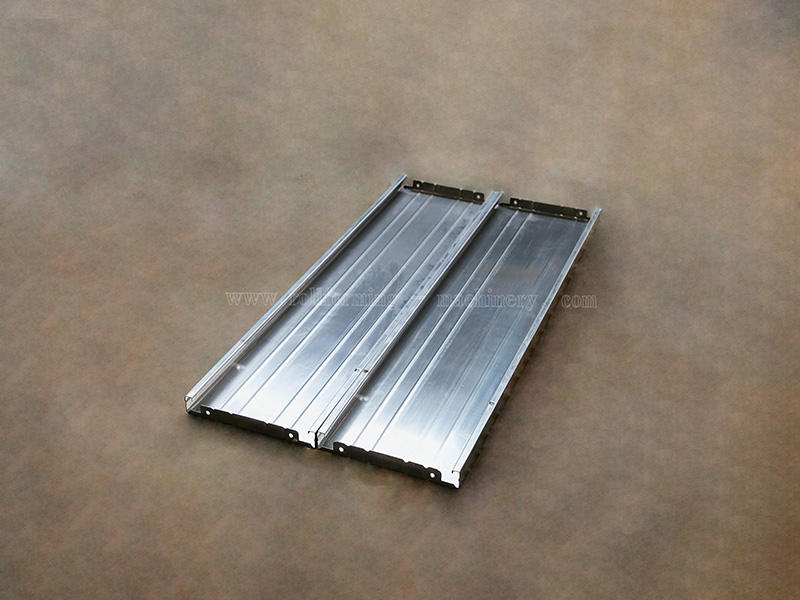

8) Product Show

After-Sale Service

1. The warranty is 24 months after the client receives the machine.
   Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost.

Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc

Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
